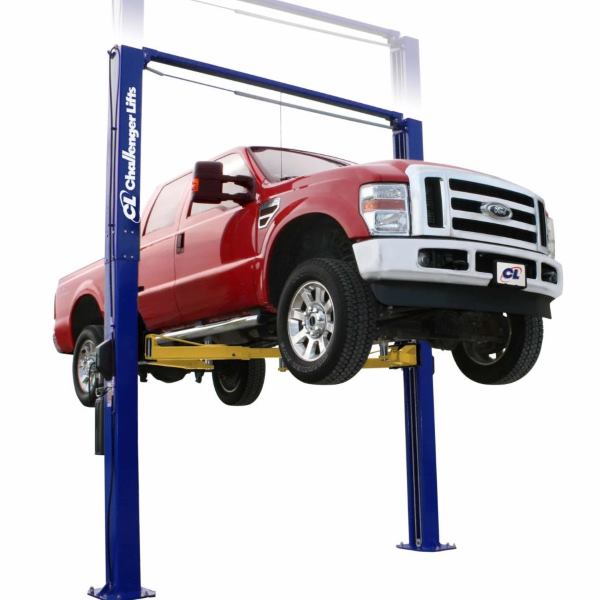

Challenger’s E12
The Challenger Lifts E12 2-Post Lift offers symmetric lifting capability with 2-Stage Front and Rear Arms. Adjustable column height offers flexibility to accommodate high profile vehicles. All necessary truck adapters come standard and are included.
Description
Challenger's LE12 is the perfect economic 2-post lift for servicing trucks and other vehicles up to 12,000 lbs. Heavy-duty 2-stage front and 2-stage rear arms offer symmetric lifting capability. Also, adjustable column height accommodates higher profile vehicles while providing ample servicing headroom. The LE12 comes standards with stack adapters. Accommodate higher profile vehicles with optional 2 foot column extensions.
FEATURES
- ALI-certified
- 12,000 lb./15,000 lb. lifting capacity
- Heavy-duty 2-stage telescoping arms provide excellent reach and retraction to accommodate a variety of vehicle
lifting points - Adjustable column height accommodates higher profile vehicles and provides maximum headroom to work underneath vehicles
- Padded overhead shut off system with micro switch prevents vehicle damage
- Standard dual integrated rubber door guards help protect vehicle panels from inadvertent damage
- Powder coat finish provides long-lasting durability
- Plated arm restraints and arm pins inhibit rust and provide long-lasting durability
- Jacketed pulley-less single-point mechanical lock release system that was once exclusive to our CL Series (E15 only)
- Adjustable footpads, stack adapters, and organizer rack come standard
| Model Number | E12 | E12 w/2 ft. Ext. | E15 | |
|---|---|---|---|---|
| Lifting Capacity | 12,000 lbs. | 15,000 lbs. | ||
| Lifting Configuration | Symmetric | |||
| Arms | 2-stage front/2-stage rear | |||

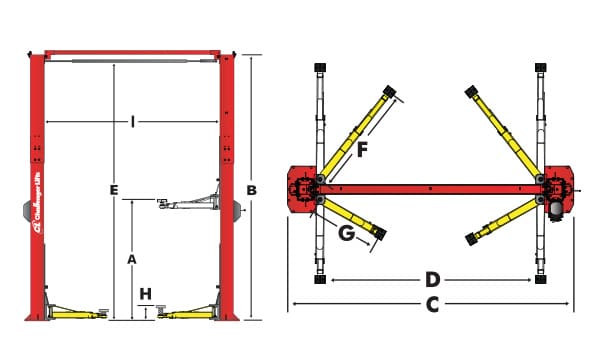

| A | Rise Height1 | 77.75" | ||
| B | Overall Height | 166”/175" | 190”/199” | 174”/198” |
| C | Overall Width | 139.75” | 147.125” | |
| D | Drive-Thru Clearance | 103" | 109.375" | |
| E | Floor to Overhead Switch | 159.5” / 168.5” | 183.5” / 192.5” | 166” / 190” |
| F | Maximum Arm Reach | 54.5" | 55" | |
| G | Minimum Arm Reach | 35.75” | 36.5" | |
| H | Screw Pad Height (Min/Max) | 5.25” - 6.75” | ||
| I | Inside Columns | 115" | 122.25" | |
| Motor/Voltage2 | 2HP, 208v - 230v | |||
| Speed of Rise | 84 s | 75 s | ||
| Ceiling Height Required | 167” / 176” | 191” / 200” | 175” / 199” | |
| ALI/ETL Certified | ✓ | |||
| Colors Available | Red, Blue | |||
