Description

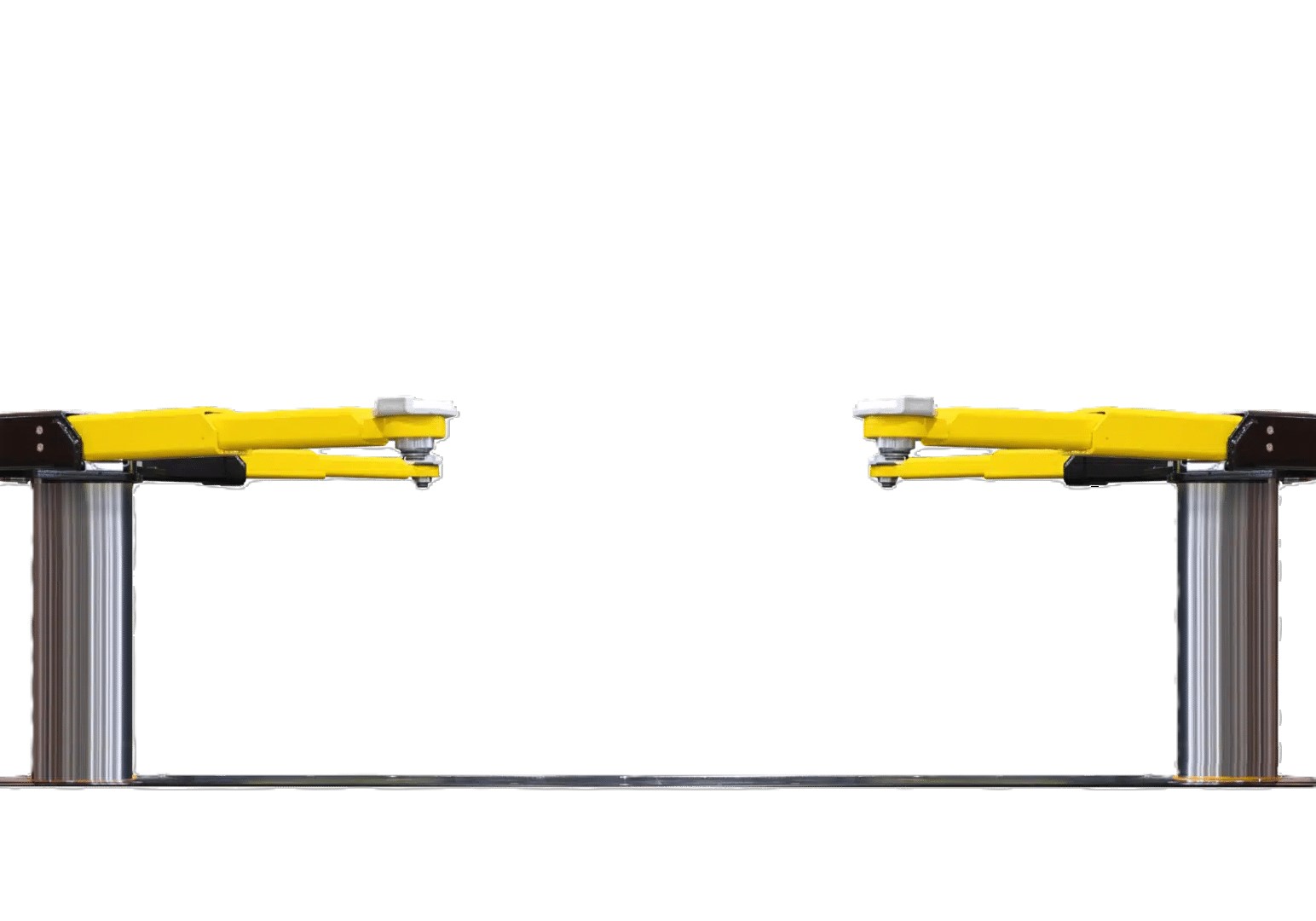

Our 12,000 lbs. hydraulic inground lift provides an extra-wide drive-through clearance for servicing wide-bodied and electric vehicles. Its design allows for battery-lowering out of electric vehicles and comes standard with True 3-Stage arms and double-telescoping screw pads. Bench-mounted controls are optional.
The EW12 can handle some of the widest cars currently on the market, such as the RAM® TRX, Hummer® EV, Tesla® Model X & Ford® Mach-E.
Features
- • 3-Stage Front & Rear Arms
- • 88″ Drive-Thru clearance
- • QuickCycle Available
- 8.5” diameter chrome pistons provide greater stability under load
- Chrome, non-breathing ram style cylinder provides for longer lift life
- Mechanical lock engages every 3” allowing ergonomic working height for technicians to increase productivity and minimize fatigue
- Fully-contained and sealed recycled polymer cassette tub eliminates the risk of hydraulic fluid seeping into the ground
Specifications
| Model Number | EW1220 |
|---|---|
| Lifting Capacity | 12,000 lbs. |
| Capacity per Arm | 3,000 lbs. |
| Arms | 3-stage front/3-stage rear |
| Screw Pad Height | 4” - 6.125” |
| Arm Reach | 20" - 48.5" |
| Stroke | 72” |
| Rise Height | 78” |
| Drive-Thru Clearance | 88” |
| Width Overall | 121.5" |
| Speed of Rise | 63 s |
